Description

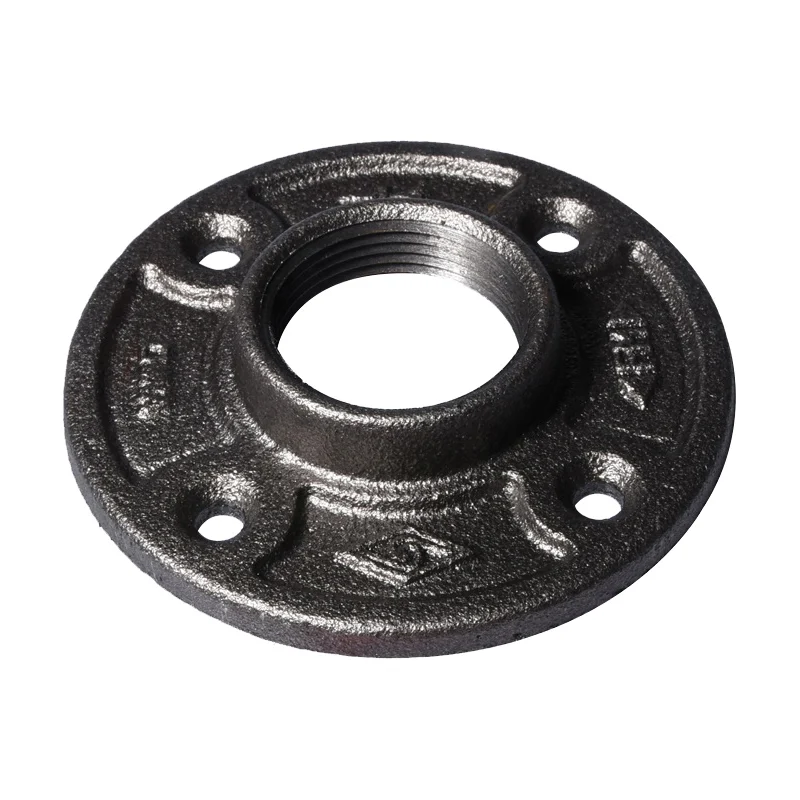

ProSource Floor Flange, Nominal Size: 1 in, FIP Connection, Flange Diameter: 3.8 in, Bolt Hole Diameter: 0.28 in, Number of Bolt Holes: 4, Length Through Bore: 0.67 in, Maximum Pressure: 300 psi, Operating Temperature: -4 to 572 deg F
- The pipe flange has a black finish
- The pipe flange is UL and FM certified
- The pipe flange meets ASTM and ASME standards
- The pipe flange is made of 150 class malleable steel
- The pipe flange is suitable for securing pipe to wall or floor-mounts
Nominal Size1Connection TypeFIPFlange Diameter3.8Bolt Hole Diameter0.28Number of Bolt Holes4Length Through Bore0.67MaterialMalleable steelMaximum Pressure300Operating Temperature-4 to 572
