Description

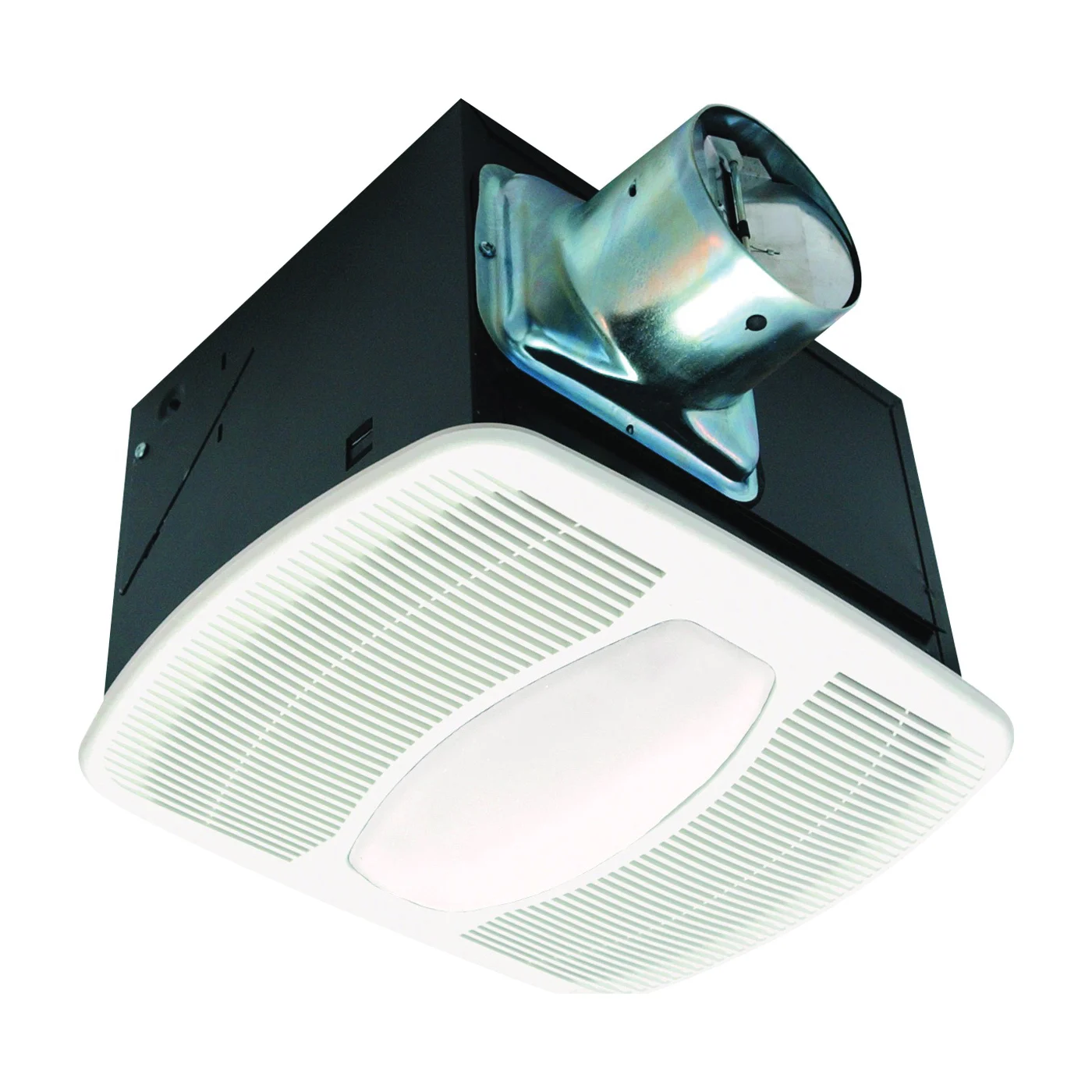

the Quiet exhaust fan series features an energy efficient fluorescent light with a contoured low profile grill, a moonstone glass lens and a night light. All can be wired to operate separately and the electronically balanced centrifugal blower wheel assures maximum ventilation at minimum sound. Spring-loaded damper protects against back drafts. UL listed for installation over a tub or shower on a GFCI circuit. HV12100 Certified. Standard 26 W maximum compact fluorescent four-pin quad tube lamp, 7 W night light, Motors suitable for continuous operation. 4 in metal duct collar with back draft damper provides a solid ducting connection and prevents drafts from entering the room. White polymeric grill 11 x 13-3/4 in. Polymeric dual blower wheel. (Use Orgill Sku 544.6042 for replacement bulb).
- White, polymeric grill secured in place with torsion springs, easily removed if necessary
- Blower wheel, balanced polymeric dual inlet blower wheel 51/4 in Dia x 27/8 in D, 30 paddles, secured in place via press fit
- Heavy-duty motor, plug-in, 4-pole motor, life time lubrication, suitable for continuous operation
- Duct collar plastic collar for 4 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
- Ventilating area for bathrooms up to 100 sq-ft and for other rooms up to 125 sq-ft
- Electrical connections 1/2 in electrical knockouts provided
- Easily installs using the included adjustable hanging brackets
Voltage Rating120Current Rating0.6Wattage Rating7Frequency Rating60Air Flow Rate100Speed Rating984Grill ShapeRoundDuct Size4MaterialMetalColorWhiteSound Level2.5Dimensions9.4 in L x 10.88 in W x 7.88 in HIncludesBlower, Damper and Duct Collar, Grill with Glass Light Lens and Hanger Bars
