Description

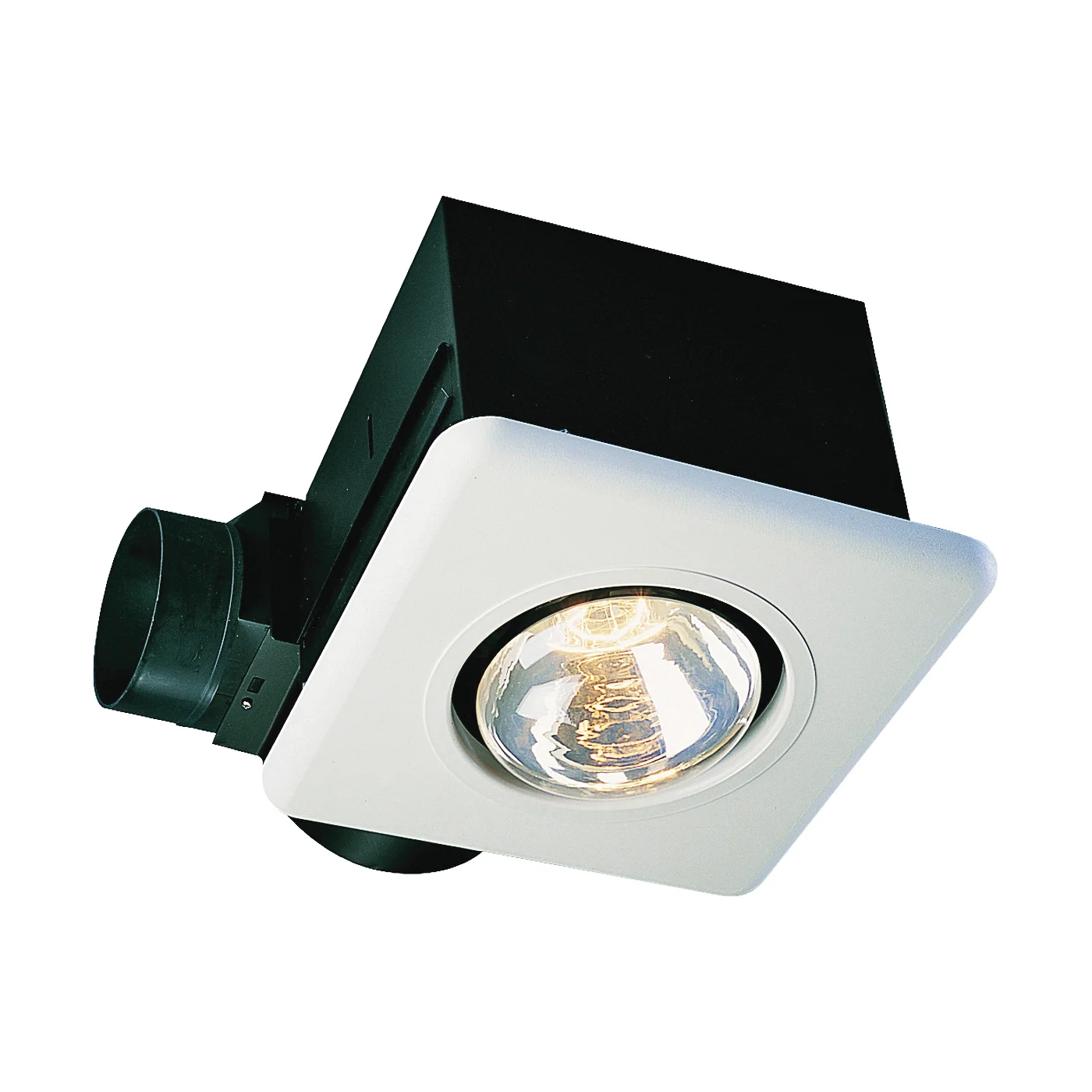

One-piece polymeric blower wheel. White polymeric grill. Dimensions of 10 in x 10 in. One 250 W maximum, type R40 bulb, medium base infrared lamp to deliver silent heat to the room, bulb not included. Rated type IC for ceilings insulated to R-40. Plastic collar for 4 in duct connection comes complete with built-in non-metallic back draft damper for quiet operation. UL listed. HVI2100 certified.
- Utilizes one 250 W maximum type R40 medium base infrared lamp
- Rated type IC for ceilings insulated to R-40
- Easily installs using the included adjustable hanging brackets
- 4 in plastic damper protects against backdrafts and ensures quiet operation
- All functions can be wired to operate separately
- White, polymeric grill (flame retardant ABS UL rated 94-5V) secured in place with torsion springs, easily removed if necessary
- Blower wheel one-piece polymeric wheel, 3-7/8 in Dia, 2-1/2 in wide with 21 fins
Voltage Rating120Current Rating2.6BTU Rating850Fan TypeExhaustAir Flow Rate70Grille Height10Grille Width10Grille MaterialPolymerOpening Width8-1/4Opening Height8Installation TypeHanger BarIncludesBlower Motor, Damper, Duct Collar, Exhaust Fan Housing, Grill with Glass Light Lens, Hanger Bars, User Manual
