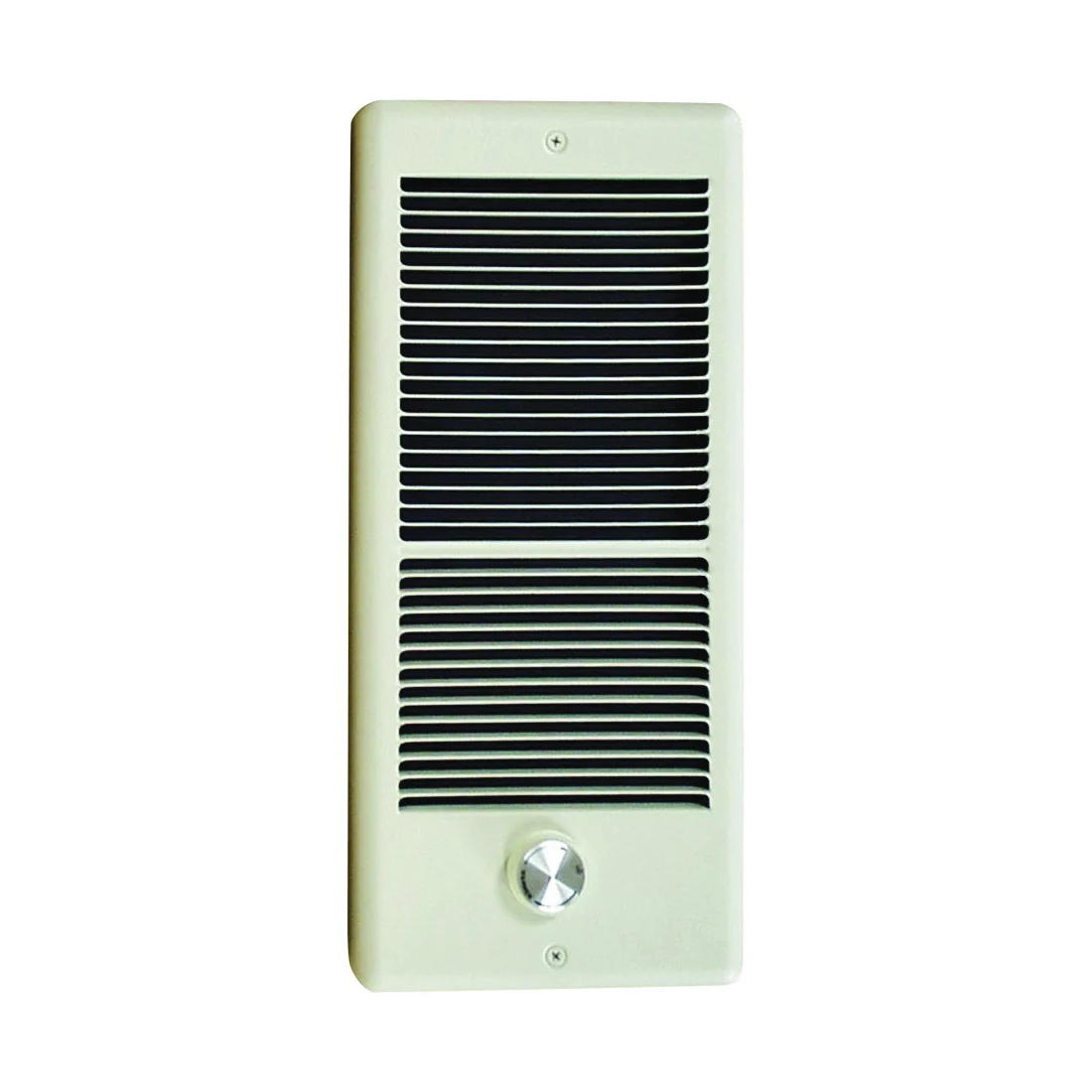

E4315TRPW Electric Bath Heater with Wall Box, 12.5 A, 120 V, 5120 Btu, 70 cfm Air, White – TPI

Description

Manual reset thermal limit. Finned tubular steel element. Propeller style fan blade 2200 rpm/70 CFM. Powder-coated 20 ga steel front. Rough in dimensions 14-1/2 ft W x 7-1/8 ft H, 3-1/2 ft deep. Single pole built-in thermostat. Unit not approved for ceiling mount applications. Unit can be positioned to allow left, right or top discharge. Grill dimensions of 16-3/4 in W x 7-5/8 in H.

• Powder-coated 20 ga steel front
• Manual reset thermal limit
• Finned tubular steel element
• 2200 rpm/70 cfm propeller style fan blade
• Unit not approved for ceiling mount applications
• Unit can be positioned to allow left, right or top discharge

Voltage Rating120Current Rating12.5BTU Rating5120Heater TypeFan ForcedThermostat Type1-PoleAir Flow Rate70Grille Height7-5/8Grille Width16-3/4Grille MaterialSteelFinishPowder-CoatedColorWhiteInstallation TypeSurfaceDimensions14.5 in L x 7.12 in W x 3.5 in H
