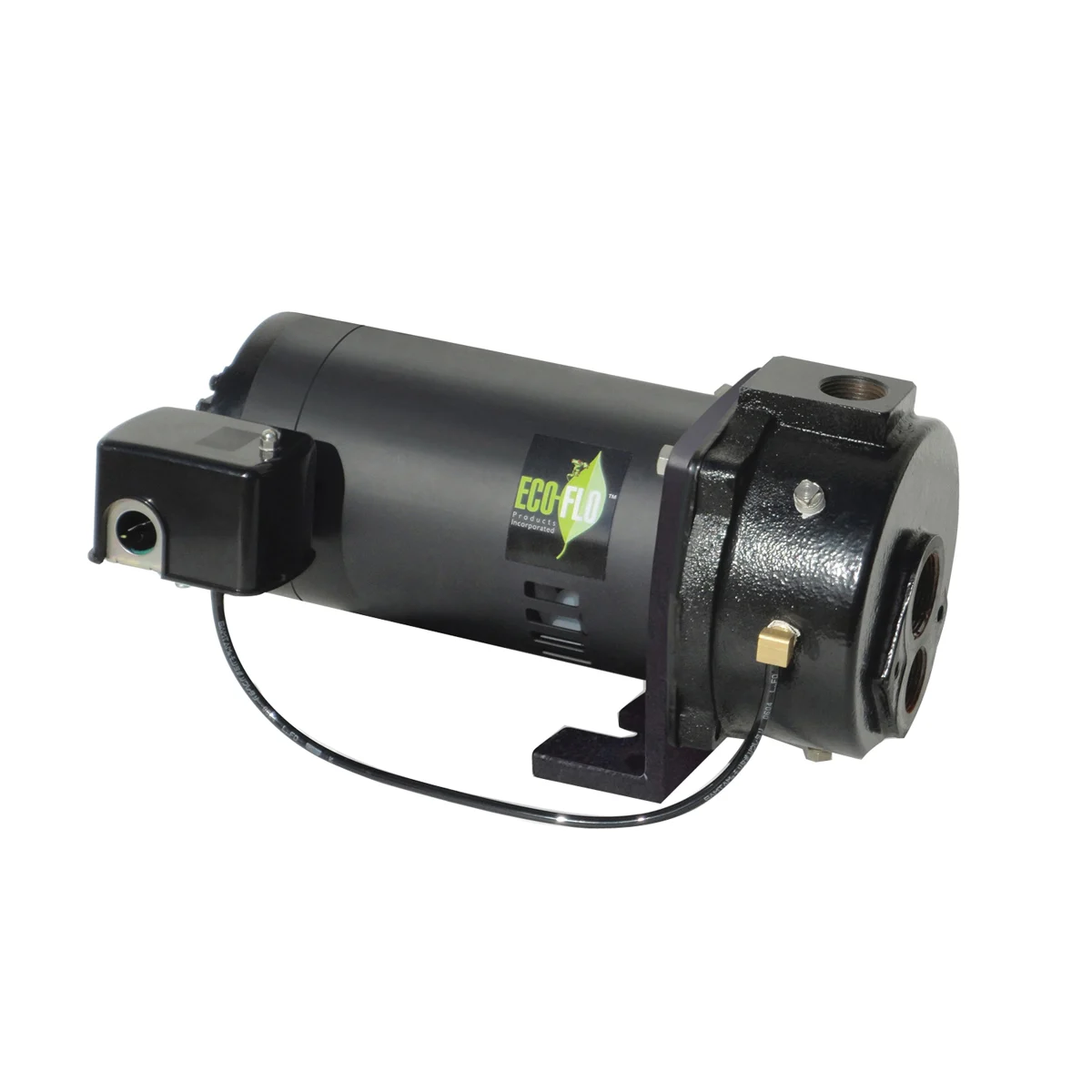

EFCWJ7 Deep Well Jet Pump, 115/230 V, 3/4 hp, 1-1/4 in Suction, 1 in Discharge Connection, 7 gpm, Iron

Description

The EFCWJ7 3/4 HP convertible jet pump can be utilized in shallow or deep well installations. Ideal for shallow well applications with pumping levels to 25 ft. and pumping levels to 90 ft. for deep well applications. Jet package included with pump, well injector casting, jet nozzle, venture tubes and hardware for both Shallow Well and Deep Well applications.

• Built-in overload motor, well injector kit included (well injector casting, jet nozzle, venturi tubes and hardware)
• Motor features stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical seal and insulated windings
• Provides Superior Performance and High Capacities with more Pressure for DeepWater Wells at 20 Feetand pumping levels to 90 ft. for deep well applications
• Cast-iron housing ensures enhanced durability
• 30-50 pressure switch and pressure gage included with the pump
• Includes well injector casting and jet nozzle for convenient use

Connection Size1-1/4 in Suction, 1 in DischargeConnection TypeFNPTVoltage Rating115/230Current Rating10HP Rating3/4Flow Rate7Pressure Rating56Motor TypeDual VoltageMaximum Head129.17MaterialCast IronSuitable forDeep and Shallow WellsIncludesWell injector casting, jet nozzle, venture tubes and hardware
