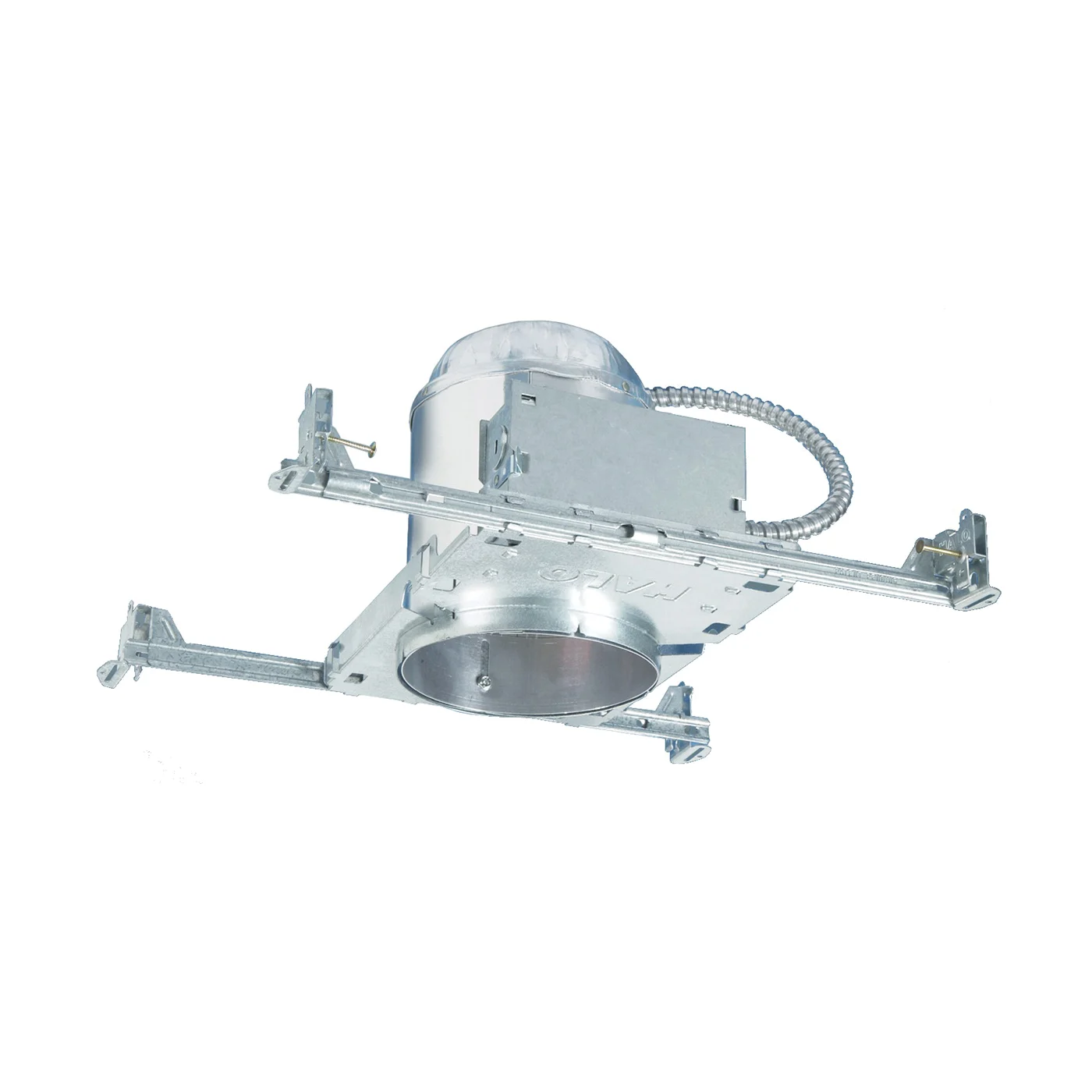

H5ICAT Light Housing, 5 in Dia Recessed Can, Aluminum – Halo

Description

The Halo H5 Series is designed to accommodate smaller sized PAR20 and PAR30 halogen lamps. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H5ICAT is designed for use in insulated ceiling applications. This is an Air-Tite™ housing and may be used to meet restricted air flow requirements.

• Quick connect wiring connectors included in junction box
• Die-formed housing and plaster frame
• Housing may be removed from plaster frame for junction box access
• Sealed and gasketed for AIR-TITE™™ ready installation
• Designed for insulated ceilings in direct contact with insulation
• Housing adjusts in plaster frame to accommodate up to 1-3/8 in ceiling thickness
• Rigid socket plate adjusts and locks without tools for various lamp sizes

Recessed Can Diameter5Ceiling Opening Size5-1/2MaterialAluminumCeiling TypeInsulatedMounting TypeRecessedDimensions10-1/2 in L x 7-1/4 in W x 7 in HIncludesCeiling Contact Gasket, Cut-Outs, Locking Screw, Overspray Protector, Pre-installed Nail, Slide-N-Side Connectors, Wiring Nut
