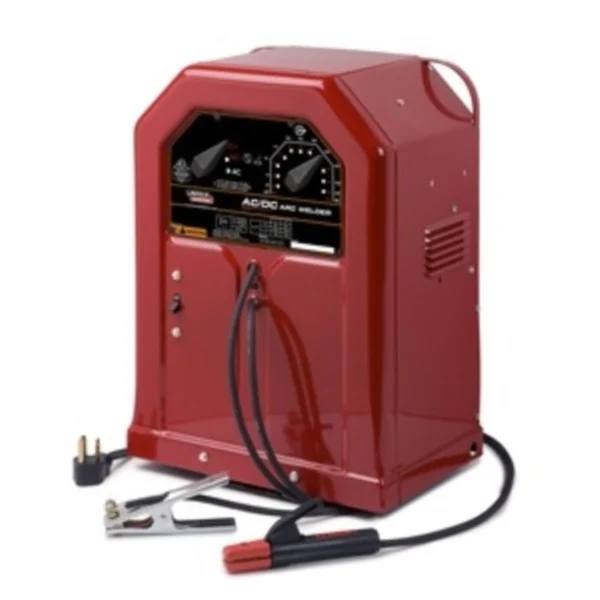

K1170 Stick Welder, 230 V Input, 50 A Input, 225 A, 1-Phase, 20 % Duty Cycle

Description

Lincoln Electric Stick Welder, Input Voltage: 230 V, Input Current Rating: 50 A, Rated Output: 225 A, Frequency Rating: 60 Hz, Number of Phases: 1, Duty Cycle: 20 %, Cable Length: 10 ft, Welded Material: Carbon Steel/Cast Iron/Low Alloy Steel/Stainless Steel, Housing Material: Steel, Dimensions: 17-1/4 in W x 12 in D x 24 in H, Weight: 96 lb, Includes: Insulated Electrode Holder and Cable, Work Clamp, Input Cable with Attached Plug

• Easy to install, comes with attached 6 ft input power cable and NEMA 6-50P plug
• Full range 40 to 225 A selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld
• Smooth arc makes it easy to weld with different electrodes including mild steel, low hydrogen, stainless steel and hard facing electrodes
• 225 A AC output is enough for 3/16 in Dia general-purpose mild steel electrodes and 5/32 in sizes of other electrodes

Input Voltage230Input Current Rating50Rated Output225Frequency Rating60Number of Phases1Duty Cycle20Cable Length10Welded MaterialCarbon Steel/Cast Iron/Low Alloy Steel/Stainless SteelHousing MaterialSteelDimensions17-1/4 in W x 12 in D x 24 in HWeight96IncludesInsulated Electrode Holder and Cable, Work Clamp, Input Cable with Attached Plug
