Description

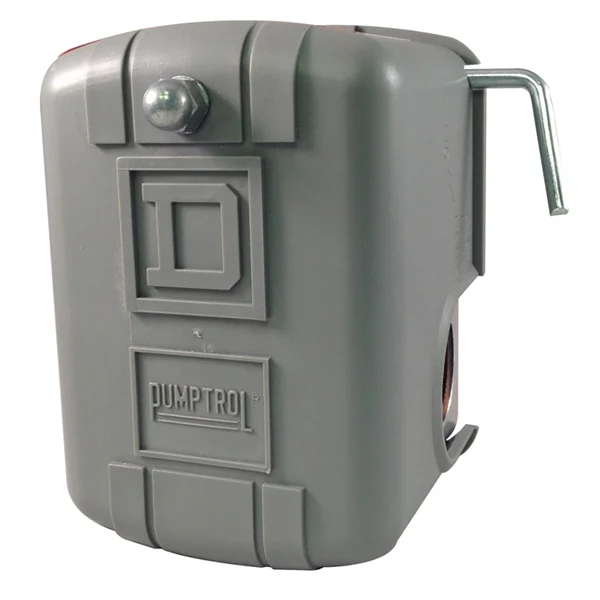

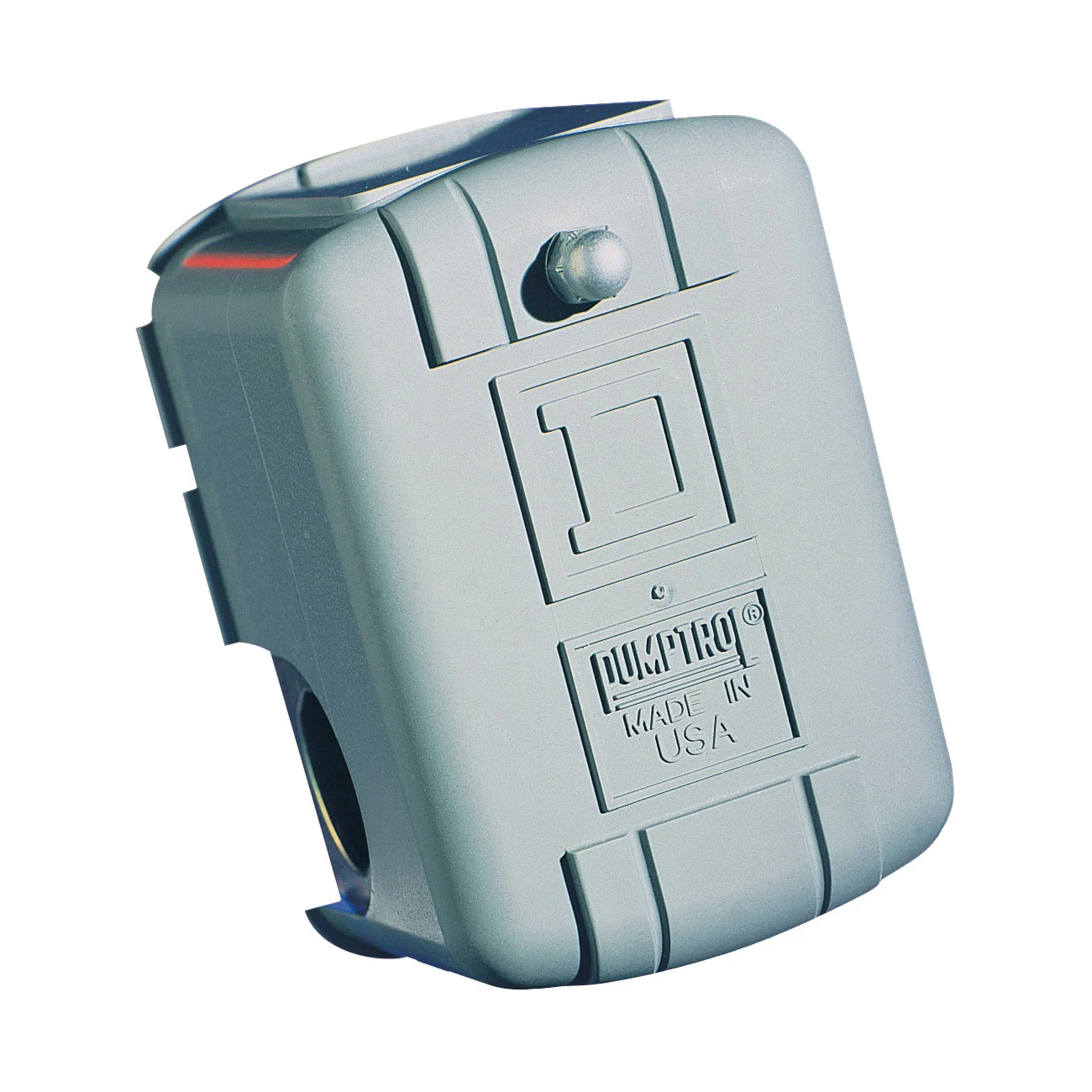

Water pump pressure switch factory set to 30 to 50 psi. Suitable for use on all types of pumps including jet, submersible and reciprocating. 2 Pole, NEMA Type 1 indoor enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified, includes low-pressure cut-off to stop pump in the event of run dry or a line break. Individually boxed.
- Adjustable cut-in/out
- Diaphragm actuated
- Long life
- Designed to monitor and control electrically driven water pumps
- These durable pressure switches monitor systems to start and stop a pump at pre-set pressures
- Low pressure cut off
Voltage Rating115/230Contact Form2-PoleNumber of Phases1Connection Type1/4-18 NPS FemaleEnclosure TypeNEMA 1Operating Cycles100,000Working Pressure220Suitable forWater PumpsIncludesLow Pressure CutoffTypePressure Switch
