Description

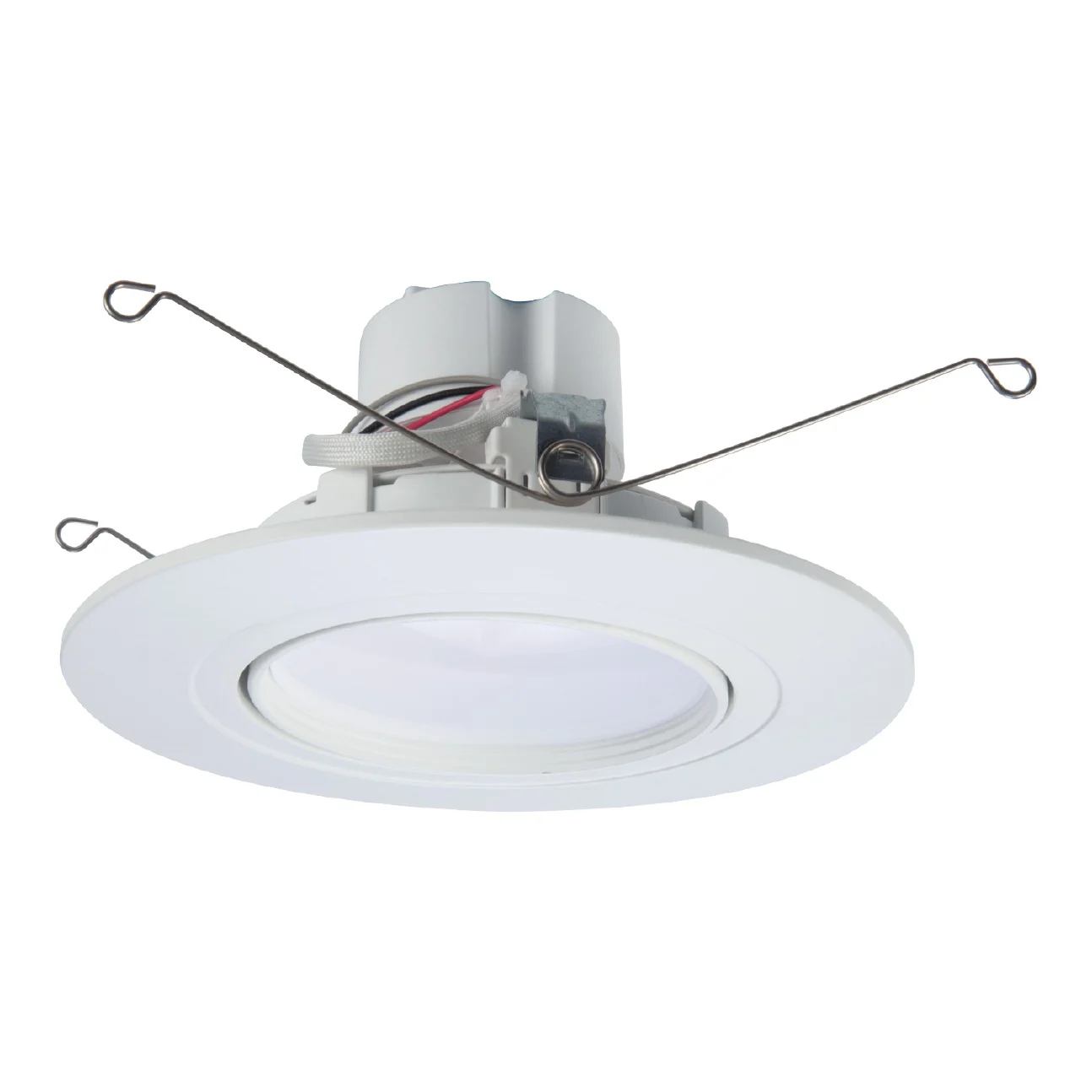

The Halo RA56 SeleCCTable™ LED adjustable gimbal is a complete LED baffle-trim module for 5 or 6 in aperture recessed downlights. It is suitable for new construction, remodel and retrofit installation. Using the CCT selectable switch users can chose between five different color temperatures. The RA56 SeleCCTable™ gimbals feature adjustment of 35 deg tilt and up to 360 deg rotation.
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
- Up to 360 deg rotation
- 35 deg tilt
- Mid power LED array provides a uniform source with high-efficiency and no pixilation
- Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity
- Regressed lens
- Integral 120 V 60 Hz constant current driver provides noise-free operation
Voltage Rating120Current Rating0.065Wattage Rating7Trim TypeRegressed BaffleLamp BaseE26Lamp TypeLEDMounting TypeRecessedCeiling TypeStandardAverage Life50,000Lumens600Color Temperature2700 to 5000Color Rendering Index (CRI)90Trim ColorMatte WhiteMaterialAluminumFinishMatteColorWhiteDimensions7-1/4 in OD x 3-1/2 in HIncludesLED Array, Heat Sink, Reflector, Lens, Baffle, Trim Ring
